System Ace XL GS CF

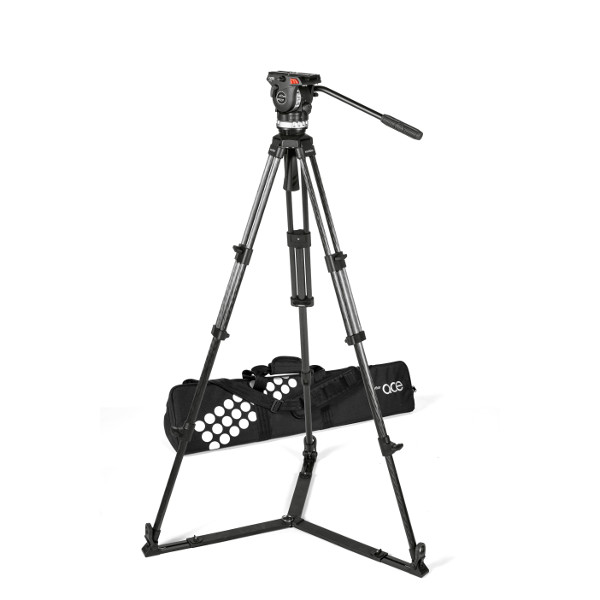

Sachtler System Ace XL carbon fibre with Fluid Head, Ace 75/2 CF Tripod , Ground Spreader & Bag

The Ace XL Tripod is exclusively available as a package with a 75 mm fluid head and a useful transport bag. Anybody who works on uneven ground and “on location” would have an advantage with the two-stage extension tripods featuring a mid-level spreader.

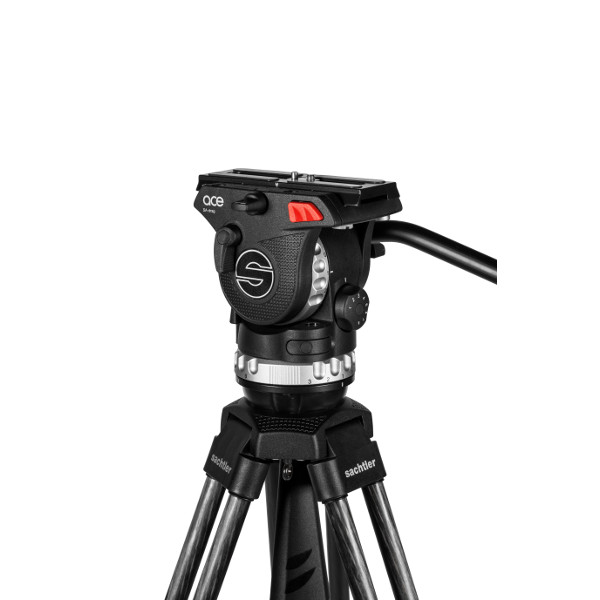

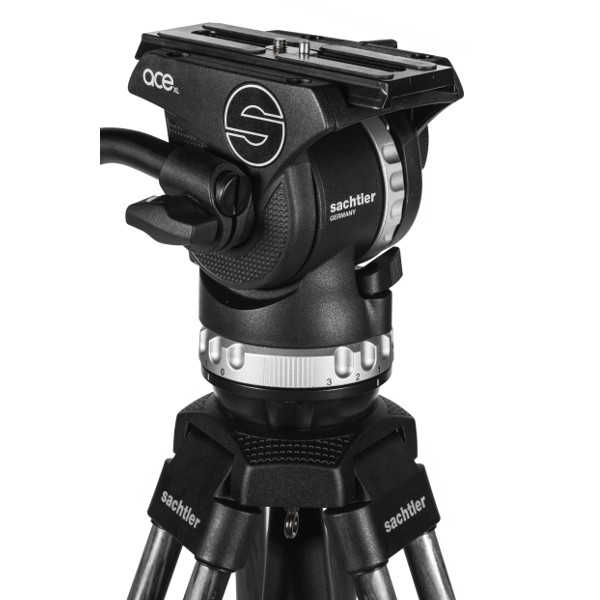

Being able to work quickly and efficiently also means being able to get the perfect shots easily. Once you have balanced your camera, patented Sachtler drag always gives you subtle and smooth movement. Three horizontal and vertical grades of drag also help you work intuitively and quickly, while always being sure your gear isn’t letting you down. The 75 mm head fitting has a large sliding range of 120 mm, helping to give the flexibility to work in the way that gets you the best results.

Pan bar count

1

Payload

4.40 to 17.60 lb

Bowl size

75 mm

Weight

9.02 lb

Spreader type

Ground spreader

Material

Carbon Fibre

Transport length

33.54 in

Tripod stages

2

Height with spreader

1.84 to 5.67 ft

Temperature range

-22 to 140 °F

Tilt range

90° to -75°

Sliding range

4.06 in

Interface Compatibility

Slide-in

Counterbalance

8 counterbalance steps

Drag

3 + 0 horizontal and vertical grades of drag

IN THE BOX:

Tripod Ace 75/2 CF

• Ground spreader SP 75

• Ace XL

• Padded bag Ace
